Optical Cross Calculator: Sphere, Cylinder, and Axis

What is an optical cross?

An optical cross is a diagram of one spherocylindrical refraction drawn as the power in itstwo principal meridians, 90 degrees apart.

A spherocylindrical lens has one power along the axis meridian and a second power along the meridian 90 degrees away. Writing that pair on two crossed lines is the optical cross, also called the power cross. The cross carries the same information as SPH, CYL, and AX — it just stores it as two meridian powers instead of three written terms. Nothing is added and nothing is removed by drawing it, which is why the cross is the check step when a refraction has been rewritten, split across two records, or handed over between instruments.

How do you calculate the power in each principal meridian?

Power in any meridian equals sphere + cylinder × sin²(meridian − axis), which returns the sphere in the axis meridian and sphere plus cylinder 90 degrees away.

The following three steps read a written Rx onto the cross.

1. Draw the axis meridian and write the sphere on it.
2. Draw the meridian 90° away and write sphere + cylinder on it.
3. Keep both meridians between 001 and 180.

Sine squared is what makes the cylinder full-strength at 90 degrees from the axis and absent along the axis itself. At 45 degrees to the axis the term is 0.5, so the meridian carries sphere plus half the cylinder — the same arithmetic that produces a spherical equivalent, computed on the Contact Lens Conversion Calculator rather than here.

How do you plot an optical cross from a written Rx?

A written Rx plots onto the cross as sphere on the axis meridian and sphere plus cylinder on the meridian 90 degrees away.

The locked worked pair from the plus/minus cylinder converter at ODReference, Plus/Minus Cylinder Conversion shows why the cross is useful: +2.00 +1.00 × 090 and+3.00 −1.00 × 180 are one refraction written twice. Both plot onto the same cross — 090° +2.00 and 180° +3.00. The following examples are computed by the calculator above.

Rows one and two are the same cross reached from opposite cylinder signs. Rows three and four show an oblique axis, where the perpendicular meridian is still the axis plus 90 within 001–180.

How do you check the power in an oblique meridian?

Power in an oblique meridian is calculated with the same formula, substituting that meridian for φ.

Enter the meridian in the optional field on the calculator. For +2.00 +1.00 × 090, the 045 meridian carries +2.50, because sin²(045 − 090) equals 0.5. Oblique meridian powers are teaching and verification values. They are not a second prescription and they are not ordered.

How do you calculate sphere, cylinder, and axis from an optical cross?

In minus-cylinder form, sphere is the more plus meridian power, axis is that meridian, and cylinder is the other power minus the sphere.

The following three steps read the cross back into a written Rx.

1. Choose the meridian that becomes the sphere: the more plus power for minus-cylinder form, the more minus power for plus-cylinder form.
2. Write the axis as that meridian, between 001 and 180.
3. Subtract the sphere from the remaining meridian power to get the cylinder.

Read the cross 090° +2.00 and 180° +3.00 in minus-cylinder form and the result is+3.00 −1.00 × 180: sphere +3.00 on the 180 meridian, cylinder +2.00 − 3.00 = −1.00. Read the same cross in plus-cylinder form and the result is +2.00 +1.00 × 090. Equal powers in both meridians mean cylinder is 0, so the Rx is spherical and has no axis.

Why does one optical cross have a plus-cylinder and a minus-cylinder writing?

Plus-cylinder and minus-cylinder writings pick different meridians as the sphere, so both describe one cross.

Nothing on the cross moves when the cylinder sign changes. The sphere hops to the other meridian, the axis follows it, and the cylinder reverses sign to keep the second meridian at the same power. That is exactly the three-rule transposition — new sphere = sphere + cylinder, cylinder sign reversed, axis ± 90° within 001–180 — seen from the cross instead of from the written line. Convert cylinder notation on the Plus and Minus Cylinder Transposition Calculator; that page owns the notation how-to and the plus-to-minus lemmas, and this one owns the cross.

When do you use an optical cross before fitting toric contact lens parameters?

An optical cross is used to separate the meridians before each one is vertex-compensated and rounded into starting toric contact lens parameters.

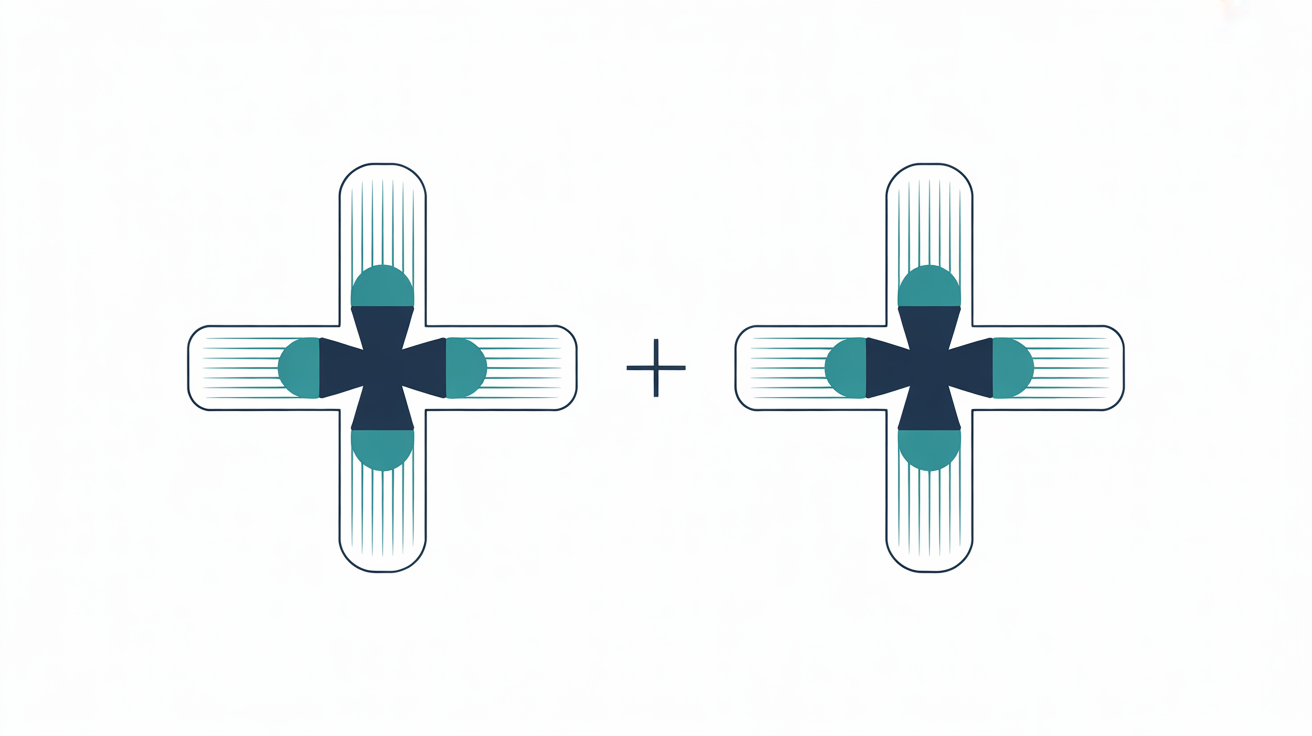

Spectacle-to-contact conversion for a toric lens works meridian by meridian: each principal meridian is compensated at the corneal plane, then sphere and cylinder are rebuilt and the axis is carried through unchanged. The cross is the step that makes those two meridians explicit. It does not vertex them. Compensation uses Fc = Fs ÷ (1 − d × Fs)at a 12 mm default and matters at about ±4.00 D — that is the job of the Contact Lens Vertex Calculator and Distance Chart.

The following four steps continue the fitting path.

1. Plot the refraction on the cross and confirm both meridian powers.
2. Standardize the written cylinder sign for the order.
3. Convert each meridian to the corneal plane and round to available steps.
4. Fit the starting toric lens and verify power on eye.

Calculate a starting toric contact lens power on the Toric Contact Lens Calculator once the meridians are read and the notation is consistent. You still fit a starting toric or multifocal contact lens on eye.

How is an optical cross different from a Jackson cross cylinder?

An optical cross draws one refraction; a Jackson cross cylinder is a phoropter lens used to refine cylinder power and axis during refraction.

The two share the word "cross" and nothing else. A Jackson cross cylinder is a refracting technique performed on a patient. An optical cross is a representation of a result. A third tool, the oblique cross-cylinder combination, adds two cylinders that sit at different axes — the arithmetic behind a sphero-cylindrical over-refraction over a rotated toric lens. That combination is calculated on the Cross Cylinder Calculator for Oblique Contact Lens Axes and verified on the Over-Refraction Calculator for Contact Lens Parameters, not here. This page takes one refraction apart and puts it back together; it does not combine two.

Optical cross calculator questions

What is the optical cross formula?

The optical cross formula is F = S + C × sin²(φ − axis), where φ is the meridian being calculated.

It returns S along the axis and S + C at 90 degrees from it.

Does an optical cross change the prescription?

An optical cross does not change the prescription; it displays the same refraction as two meridian powers.

A cross that disagrees with the written Rx means a transcription error, not a new correction.

Why must the two meridians be 90 degrees apart?

The principal meridians of a spherocylindrical lens are 90 degrees apart by definition, so the calculator refuses any other pair.

Two meridians that are not perpendicular describe two different lenses, which is a cross-cylinder combination rather than one cross.

Can an optical cross be plotted for a spherical Rx?

A spherical Rx plots as the same power in every meridian, so the cross is two equal values and there is no axis.

Enter cylinder only when the refraction includes astigmatism correction.

Are the meridian powers on the cross contact lens powers?

Meridian powers on the cross are spectacle-plane values until conversion calculates contact lens parameters at the corneal plane.

Vertex, rounding, and on-eye over-refraction are later steps.

An optical cross is not a contact lens prescription

Starting contact lens parameters still require conversion, fit, and verification on eye by a licensed practitioner. Independent professional judgment decides the ordered lens. Educated patients must not self-prescribe from a diagram. Read the bound on Starting Contact Lens Parameters Are Not a Prescription. Convert spectacle prescription to contact lens parameters after the meridians are read. Contact lens parameters at the corneal plane are the conversion output, not the cross.
