Toric Contact Lens Calculator

What starting toric parameters does this calculator return?

Starting toric parameters are SPH, CYL, and AX at the corneal plane after per-meridian vertex, plus the vertex distance used.

The following four values make up that starting set:

• Starting sphere at the corneal plane
• Cylinder reconstructed after meridional vertex
• Axis kept between 001 and 180
• Vertex distance in millimeters, with a flag for whether vertex compensation ran

Those four fields are diagnostic starting power. According to the CooperVision, Toric Calculator, the calculated theoretical power is a starting point for any manufacturer’s toric lenses. We keep that theoretical-power idea and drop the brand-recommendation step. The result panel shows unrounded meridians beside the 0.25 D rounded pair so the method is visible.

Spectacle-to-contact conversion is the upstream step. Run the full glasses path on the Contact Lens Conversion Calculator for spherical equivalent, laterality checks, or a non-toric order. This URL isolates toric cylinder and axis.

Takeaway: the returned SPH/CYL/AX set is a trial-lens start, not an ordered SKU.

How do spectacle cylinder and axis convert to contact lens cylinder and axis?

Spectacle cylinder and axis convert to contact lens cylinder and axis after minus-cylinder notation, meridional vertex, and rounding. Glasses cylinder is not automatically contact lens cylinder. Axis stays between 001 and 180. Vertex compensation leaves axis unchanged. Transposition is the only step that rotates axis by 90°.

The following table maps each attribute from the spectacle plane to the contact lens starting value.

Takeaway: cylinder and axis survive as toric parameters; only the meridional powers move with vertex.

Convert a glasses prescription that includes astigmatism with this four-step sequence:

1. Enter the spectacle refraction as written, including sphere, cylinder, and axis.
2. Vertex each principal meridian for meridional powers at or above about ±4.00 D.
3. Keep the toric cylinder; do not replace it with spherical equivalent.
4. Round starting sphere and cylinder to the nearest 0.25 D.

Plus-cylinder refractions go through the Plus and Minus Cylinder Transposition Calculator first. Most soft toric ordering uses minus cylinder. According to ODReference, Plus/Minus Cylinder Conversion, mixed plus and minus notation is where transcription errors start.

What changes when you transpose plus cylinder to minus cylinder?

Transposition writes the same optical power in minus cylinder: new SPH = SPH + CYL; new CYL = opposite sign; new AX ± 90° within 001 to 180.

The three rules, from ODReference, Plus/Minus Cylinder Conversion, are:

1. Set new sphere equal to original sphere plus original cylinder.
2. Set new cylinder to the same magnitude with opposite sign.
3. Set new axis to original axis plus or minus 90°, kept between 001 and 180.

Example from that page only: +2.00 +1.00 × 090 becomes +3.00 −1.00 × 180. Transposition does not change power. It changes written format. Sphere, cylinder, and axis update together so each meridian stays the same.

Takeaway: transpose for ordering notation, then vertex.

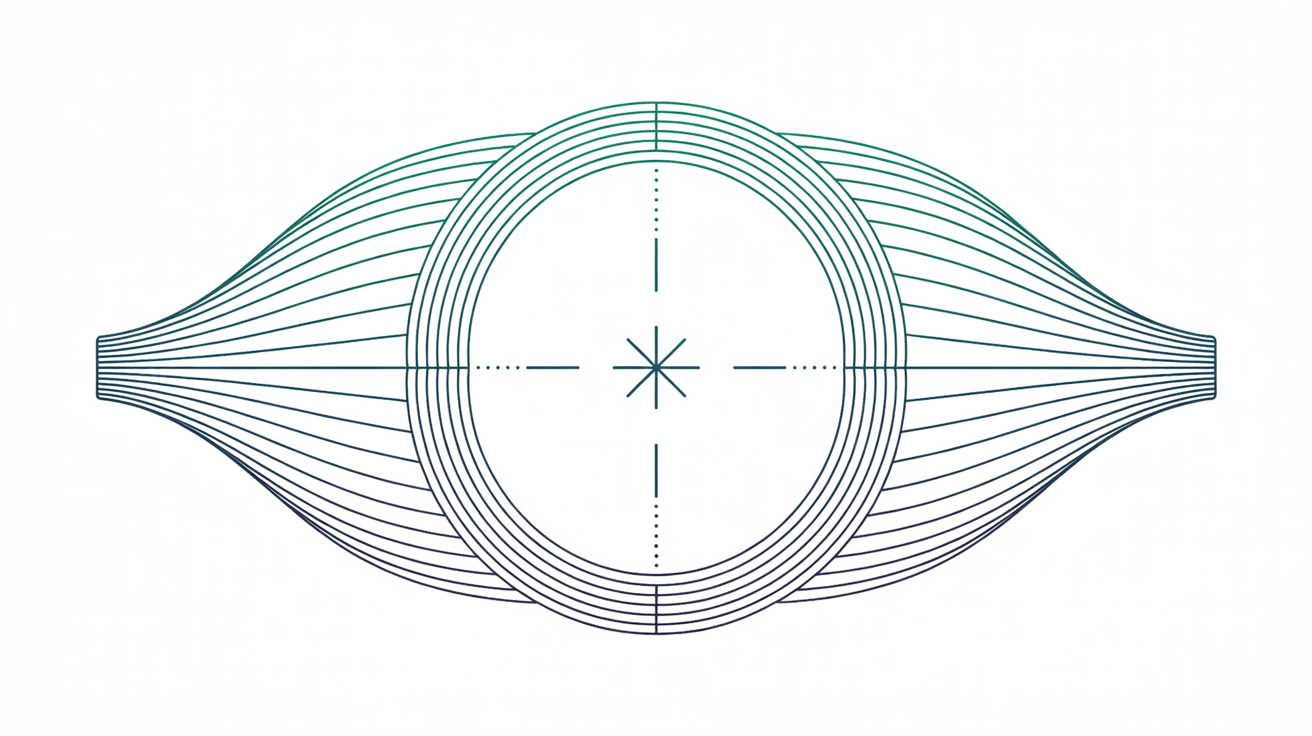

What are the two principal meridians of a toric Rx?

A toric Rx has two principal meridians: the axis meridian equals sphere, and the meridian 90° away equals sphere + cylinder.

The following two-row table is the power cross.

According to ODReference, Cross-Cylinder and Over-Refraction Calculator, Rx Plano / −1.50 × 090 has meridians 090°: 0.00 D and 180°: −1.50 D. Each meridian is vertexed separately. Isolate that step on the Contact Lens Vertex Calculator and Distance Chart when you are checking a contact lens vertex calculator toric case without reconstructing the full starting order.

Takeaway: two meridians, two vertex passes, then reconstruct SPH/CYL.

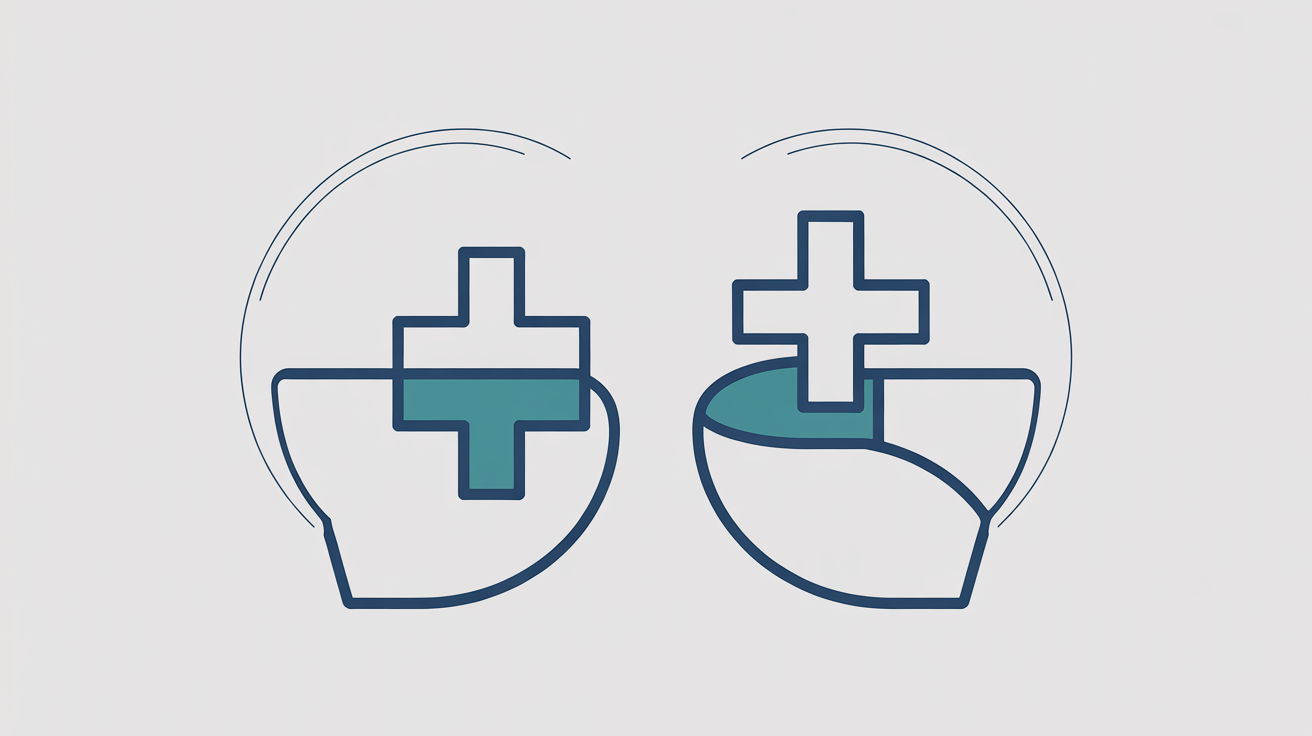

When does vertex compensation change each toric meridian?

Vertex compensation changes meridional power when spectacle meridians are at or above about ±4.00 D.

According to the ODReference spectacle-to-contact conversion page, vertex compensation becomes clinically important once meridional powers are at or above about ±4.00 D. That page also states typical vertex distance of about 12 to 14 mm between a spectacle lens and the cornea.

Minus spectacle meridians are often less minus at the cornea. Plus meridians are often more plus. Those directions come from the ODReference conversion page.

Omni reconstructs toric cylinder this way: vertex the sphere meridian; vertex sphere plus cylinder; new cylinder equals compensated second meridian minus compensated sphere; axis unchanged. Do not add the two compensated meridians to invent cylinder. Omni’s own FAQ line that adds those terms disagrees with Omni’s worked example. We follow the worked example.

According to that Omni example, spectacle −8.00 −4.25 × 045 at 14 mm converts to −7.19 −3.27 × 045 (right eye). The left eye in the same table is −8.75 −5.00 × 045 at 14 mm, which converts to −7.80 −3.74 × 045. Sphere meridian −8.00 D becomes −7.19 D. The second meridian −12.25 D becomes −10.46 D. Cylinder is −10.46 − (−7.19) = −3.27 D. Axis stays 045.

Calculate vertex-compensated contact lens power on this page as part of starting toric parameters. Use the vertex calculator for distance math in isolation.

Takeaway: the ±4.00 D gate is meridional; default vertex is 12 mm unless the refraction lists another BVD.

What vertex distance should you enter if the refraction does not list BVD?

The default vertex distance is 12 mm for spectacle refractions that omit back vertex distance.

According to Johnson & Johnson’s ACUVUE Fitting Calculator, the tool includes 12 mm vertex calculation across each power meridian. Omni’s FAQ defines BVD 12 as a refraction measured at 12 mm, and ODReference gives a typical spectacle-plane range of about 12-14 mm. CooperVision, ToriTrack Calculator vertex control runs 10.0-15.0 mm in 0.5 mm steps; we default to 12 mm and leave the field editable. Disclose that assumption in the input helper.

When is spherical equivalent the wrong choice for astigmatism?

Spherical equivalent is Sphere + (Cylinder ÷ 2) and is the wrong choice when a toric lens is indicated.

According to the ODReference conversion page, spherical equivalent is a clinical compromise used when fitting a spherical soft lens over low, regular astigmatism and accepting residual cylinder. The same page applies SE only after vertex, and only when a spherical lens is intentionally considered. This calculator never auto-SE a toric-indicated Rx.

SE is the wrong choice in three common situations: toric correction is indicated, cylinder is higher, or astigmatism is irregular. Sensitivity to residual blur is a fourth clinical reason to keep cylinder. Convert glasses prescription to contacts astigmatism on this URL as a toric start. Use SE only on a spherical intent toggle. Irregular astigmatism is a different problem from either choice: sphere, cylinder, and axis stop describing the surface, and the lens class is selected from corneal shape on Contact Lenses for an Irregular Cornea. This page keeps regular astigmatism, rotation, and LARS.

A searcher who arrived from a spherical conversion still sees the formula. SE on an indicated toric leaves residual cylinder uncorrected — and uncorrected cylinder is one of the parameters a wearer reports back as blur. Why Are My Contacts Blurry? Which Lens Parameter to Check works that report backwards to the parameter; rotation, axis and the LARS adjustment stay on this URL.

Takeaway: SE is optional spherical math. It is not toric correction.

How do you round a starting toric power to 0.25 D steps?

Starting toric sphere and cylinder round to the nearest 0.25 D.

The following three rounding rules stay manufacturer-agnostic:

• Round sphere to the nearest 0.25 D
• Round cylinder to the nearest 0.25 D
• Keep axis in 1° input, then match available axis steps in clinic without a brand axis grid

According to Omni’s vertex calculator, rounding to the nearest 0.25 D obtains the closest market step. That page also states lenses have a tolerance of ±0.13 D. ToriTrack’s output line reads “Round to 0.25D steps.” GPLI offers a round-diopters control at 0.25 (or 0.01 for GP design). We use the 0.25 D step only. We do not adopt MyAlcon, FittingHub sphere-up / cylinder-down / axis-to-10° grid. We do not adopt the contactlenscalculator.net, Toric Lens Calculator manufacturer 10° or 5° axis rounding, or its ≤0.75 D spherical-equivalent cutoff, as product rules.

The following table is illustrative rounding of already-vertexed Omni numbers, not a second conversion chart. Run the calculator above for exact values on the entered Rx.

Axis in that Omni pair stays 045. Takeaway: round power to 0.25 D; do not invent a SKU list.

How do you verify a trial toric with rotation and over-refraction?

A trial toric is verified with rotation notes and over-refraction after the lens settles on eye.

The following sequence comes from ODReference, Cross-Cylinder and Over-Refraction Calculator:

1. Place the trial toric on eye and wait for it to settle.
2. Note rotation from the clinician’s viewpoint (left vs right at the inferior mark).
3. Use spherical over-refraction (SOR) when the lens is stable and residual is sphere-only.
4. Use spherocylindrical over-refraction (SCOR) when visual acuity is below expectation, rotation is present, or residual cylinder is suspected.
5. Combine trial power, rotation, and SCOR with full cross-cylinder math, not LARS alone, when rotation is about 10 degrees or more or SCOR has cylinder.

Verify power with over-refraction after the trial lens on the Over-Refraction Calculator for Contact Lens Parameters. That URL owns the oblique cross-cylinder arithmetic, and this page stops at the verify path so the over-refraction node keeps its own depth.

Reading that rotation off the lens orientation markings, then compensating a stable rotation with LARS, are the two steps between the trial lens and the ordered axis.

Takeaway: rotation notes plus OR decide the ordered lens. Starting parameters do not.

How do you read rotation from toric contact lens markings?

Toric contact lens markings are orientation marks — a line or dot at 6 o’clock, or a pair at 3 and 9 o’clock — read at the slit lamp to measure lens rotation. The mark does not indicate the cylinder axis.

According to Optician, Essential Contact Lens Practice 8: Soft Toric Contact Lens Fitting, a soft toric lens carries an orientation marking so the practitioner can assess how far the lens has rotated and whether that rotation is stable, and that page states plainly that the mark does not indicate the cylinder axis. It also records that manufacturers use a variety of marks, typically at the six o’clock position or at the three and nine o’clock positions. Under the slit lamp the marks often appear as small dots or fine scribe lines, as described by SpecialEyes, Assessing Rotation of Customized Toric Contact Lenses (Scott Davis, LDO, ABOC, NCLEC, 24 February 2014).

The following three observations are what a fitter records once the lens has settled and the patient is in primary gaze:

• Where the mark sits relative to its intended position
• The direction of rotation, left or right from the clinician’s viewpoint
• The degree of rotation, and whether it holds steady across blinks and gaze changes

Optician describes two ways to take that measurement. Rotate a fine slit beam until it aligns with the orientation marking and read the axis from the external protractor scale, or estimate the offset against a clock face — a mark sitting at the five o’clock position is 30 degrees of rotation. A lens with two marks opposite each other allows one slit beam to pass through both, which gives the more accurate reading. Marks that are hard to see are easier in indirect or retro-illumination than in direct illumination.

Direction is read from the observer’s left and right, not from the patient’s anatomical left and right; SpecialEyes states that rule explicitly, and it is the same clinician’s viewpoint the over-refraction sequence above uses. Optician notes that a small nasal rotation of up to about five degrees during or immediately after a habitual blink is expected, while a lens resting more than 30 degrees from its intended position points to inadequate stabilization and a different lens design rather than an axis adjustment.

The assessment protocol itself — how far the mark sits from vertical, in which direction, whether it repeats across blinks, and the published stability cut-offs that decide whether a fit is steady enough to compensate at all — is on Assessing Toric Contact Lens Rotation at the Slit Lamp.

Takeaway: the marking measures rotation. It is not the axis, and it is read at the slit lamp by a licensed practitioner, not calculated here.

How does the LARS rule adjust a toric contact lens axis?

LARS — Left Add, Right Subtract — adjusts the ordered cylinder axis by the degrees a stable lens rotates: add for rotation to the clinician’s left, subtract for rotation to the right.

Optician pairs LARS with CAAS, Clockwise Add, Anticlockwise Subtract, and notes the two mnemonics mean the same thing; LARS suits lenses marked at six o’clock and CAAS suits lenses marked at three and nine o’clock. Either way the correction is applied to the axis you order next, never to the first diagnostic lens — that same page states no initial compensation of the cylindrical axis should be made when the first trial lens is chosen, because toric orientation cannot be predicted before the lens is on eye.

Worked example from that page only: a trial lens of −3.00 / −1.75 × 180 rotates 10 degrees on eye — anticlockwise, to the right in that article’s figure — so the correcting cylinder is actually sitting at 010 and vision blurs. Right Subtract gives 180 − 10, so the next lens is ordered as −3.00 / −1.75 × 170. Lid interaction rotates it the same 10 degrees in the same direction, which lands the cylinder on the intended 180. Keep the ordered value between 001 and 180: an axis of 005 less 10 degrees is written 175.

The arithmetic only holds while the rotation is repeatable. SpecialEyes states the fit is assessed and corrected before power is altered, and that a fluctuating rotation is a fit change, not an axis change. Verify the compensated axis with over-refraction after the next trial lens settles.

Takeaway: LARS moves the ordered axis by the observed rotation. It does not move anything else.

When is LARS not enough?

LARS is not enough when rotation is about 10° or more, or when SCOR carries cylinder. LARS adjusts axis for rotation only and omits sphere, cylinder, and cross-cylinder effects from axis misalignment.

According to ODReference, LARS remains a useful quick estimate when rotation is small and over-refraction is close to plano. Full cross-cylinder math belongs on the over-refraction calculator once SCOR carries cylinder or rotation is large. Convert patient-perspective rotation notes to the clinician’s left/right first.

SpecialEyes lists what an axis-only adjustment leaves out: vertex errors, lens draping, tear-lens effects, and cross-cylinder effects. Optician sets the same practical boundary from the other side — a marking within 10 degrees of its intended position leaves a spherical over-refraction sufficient, and a full spherocylindrical over-refraction unnecessary. Above roughly 10 degrees the design or the fit is reviewed rather than the axis chased. When the residual cylinder from that over-refraction sits at an oblique angle to the lens cylinder, combine the two on the Cross Cylinder Calculator for Oblique Contact Lens Axes.

What if the toric lens will not stabilize?

Unstable toric rotation is addressed by changing base curve, diameter, or design before optical compensation.

Cross-cylinder math assumes the next lens rotates the same way. Chasing power on an unstable lens is a moving target. Start with the Base Curve of Contact Lenses when geometry is the failure, then diameter or a different stabilization design.

How does an independent toric calculator differ from brand fitting tools?

An independent toric calculator maps spectacle SPH/CYL/AX to manufacturer-agnostic starting parameters. Brand fitting tools map the same Rx onto one manufacturer’s grid.

The following table states what brand and independent tools map to, and what this page does. It is a purpose map, not a clone spec.

CooperVision contact lens calculators are brand-specific portals. Those tools, plus FittingHub SKU mapping, are named on Contact Lens Calculators: OptiExpert, Simplifit, and Independent Tools. We do not impersonate the Bausch + Lomb, Toric Calculator “lens for order” flow, ToriTrack’s product calculator, J&J simplifit, GPLI’s GP widget, or Alcon FittingHub.

The rigid side of that split has its own geometry rather than its own calculator: a lens carrying cylinder on both surfaces, ordered when corneal toricity is too high for a spherical back surface to align, is defined on Bitoric GP Contact Lenses: Design and Power Effect. Soft toric rotation and LARS stay on this page.

Takeaway: independence means visible optics and no SKU grid.

What should you do after the starting toric power is calculated?

After the starting toric power is calculated, fit and verify on eye. Contact lens parameters at the corneal plane are a trial start.

Follow this five-step path:

1. Confirm vertex assumptions if meridians are high.
2. Order a diagnostic trial from starting SPH/CYL/AX.
3. Fit base curve and diameter on eye.
4. Verify with over-refraction after the trial lens.
5. Treat the output as starting parameters, never as a prescription.

Patients must not self-prescribe. Unstable rotation still points to geometry first. Convert spectacle prescription to contact lens parameters on the conversion calculator for non-toric cases. Calculate vertex-compensated contact lens power in isolation on the vertex calculator. You still fit a starting toric or multifocal contact lens in the chair.

Sources

• ODReference, Plus/Minus Cylinder Conversion — three transposition rules; mixed plus and minus notation as a transcription risk.
• ODReference, Cross-Cylinder and Over-Refraction Calculator — principal meridians; SOR versus SCOR; LARS versus full cross-cylinder; clinician left versus right.
• Optician, Essential Contact Lens Practice 8: Soft Toric Contact Lens Fitting (Katharine Evans, Rachel Hiscox) — orientation marks at six o’clock or three and nine o’clock; the mark does not indicate the cylinder axis; slit-beam and clock-face measurement of rotation; LARS and CAAS; the −3.00 / −1.75 × 180 worked example; no axis compensation on the first trial lens; 10-degree and 30-degree boundaries.
• SpecialEyes, Assessing Rotation of Customized Toric Contact Lenses (Scott Davis, LDO, ABOC, NCLEC, 24 February 2014) — diagnostic marks as small dots at the slit lamp; rotation direction read from the observer’s side, not the patient’s; fit corrected before power; what LARS omits.
• CooperVision, Toric Calculator — calculated theoretical power as a starting point for any manufacturer’s toric lenses.
• CooperVision, ToriTrack Calculator — spectacle, trial, over-refraction, and rotation; vertex control 10.0–15.0 mm; round to 0.25 D steps.
• Bausch + Lomb, Toric Calculator — brand “lens for order” flow, named as an alternative, not cloned.
• MyAlcon, FittingHub — sphere-up / cylinder-down / axis-to-10° grid, not adopted here.
• contactlenscalculator.net, Toric Lens Calculator — manufacturer 10° or 5° axis rounding and ≤0.75 D spherical-equivalent cutoff, not adopted as this site’s rules.

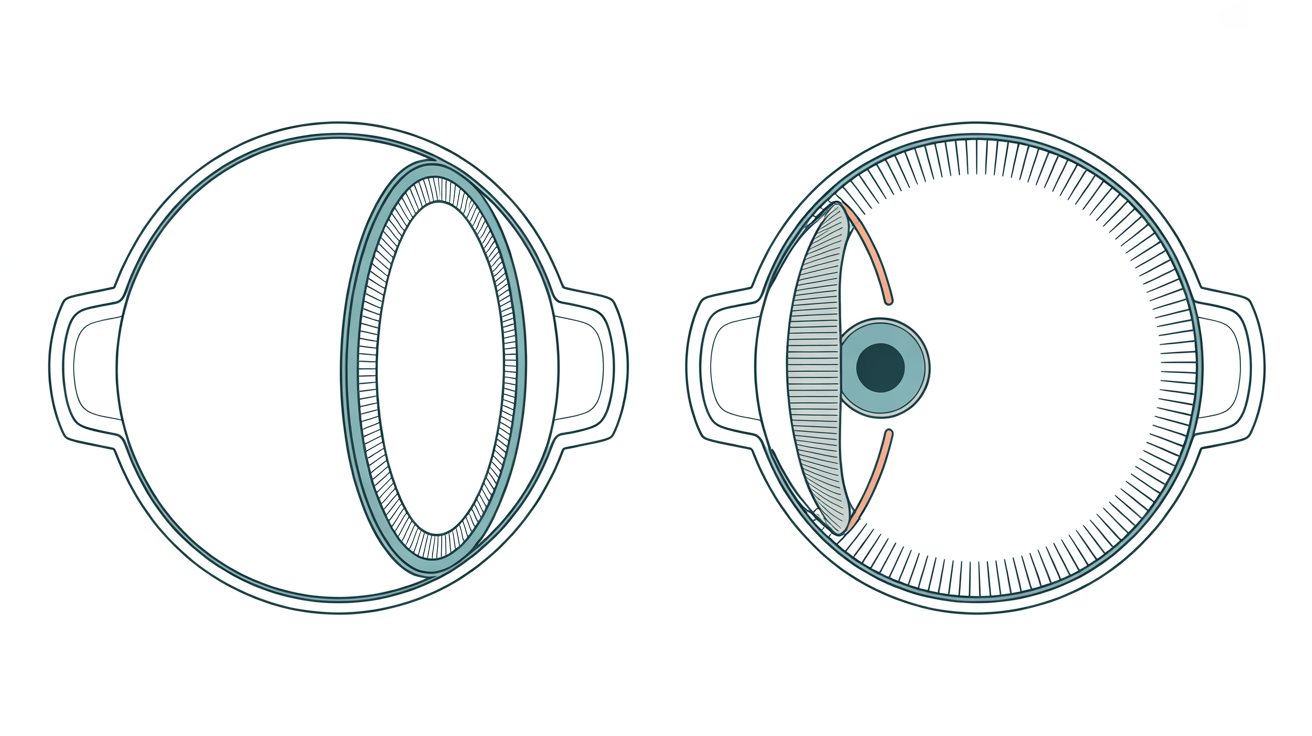

• ASCRS, Barrett Toric Calculator — intraocular-lens toric formula; this page is a contact-lens toric tool, not a Barrett IOL calculator.
